Omnitronic PM322P
Omnitronic PM322P
- 3 channels with Gain, 3-band EQ, CUE and Channel Faders
- 2 Line/Phono inputs for DJ players & turntables
- Integrated Bluetooth & USB Audio Player
- Crossfader with Reverse function
- LCD display for easy playback control
- PFL cue monitoring of channels & Master output
- Microphone input with EQ and independent level control
- Ideal for mobile DJs, events and party setups
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Related Products

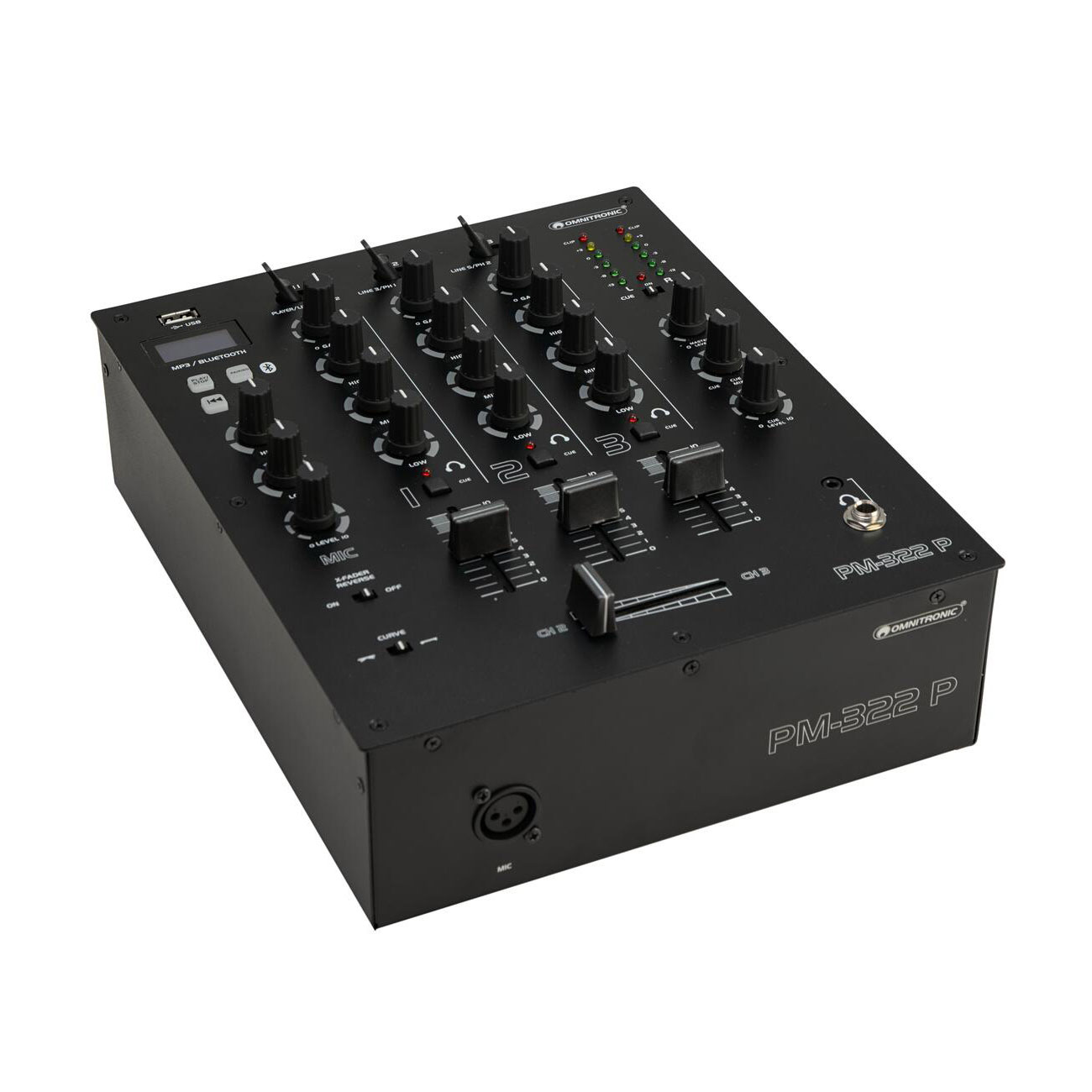

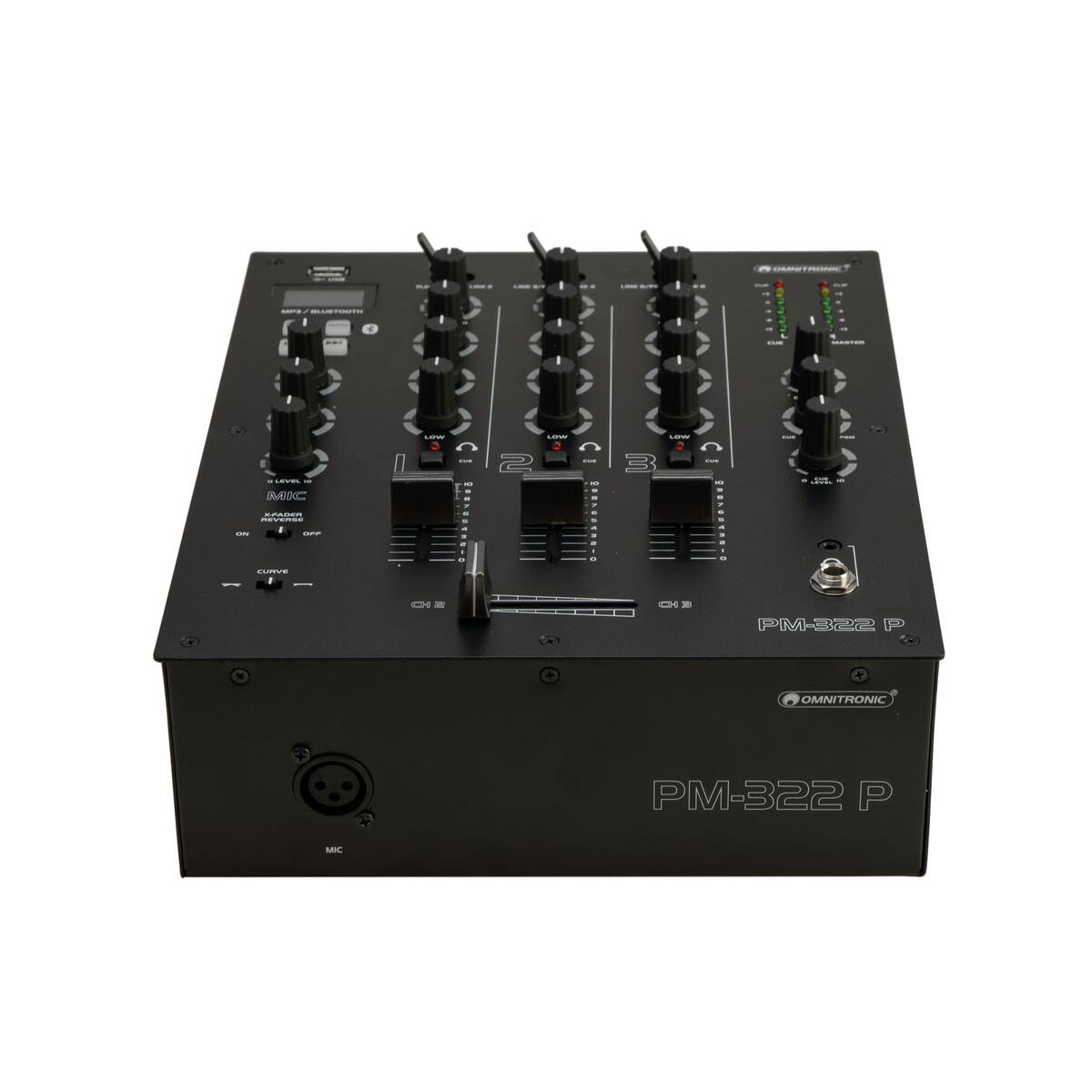

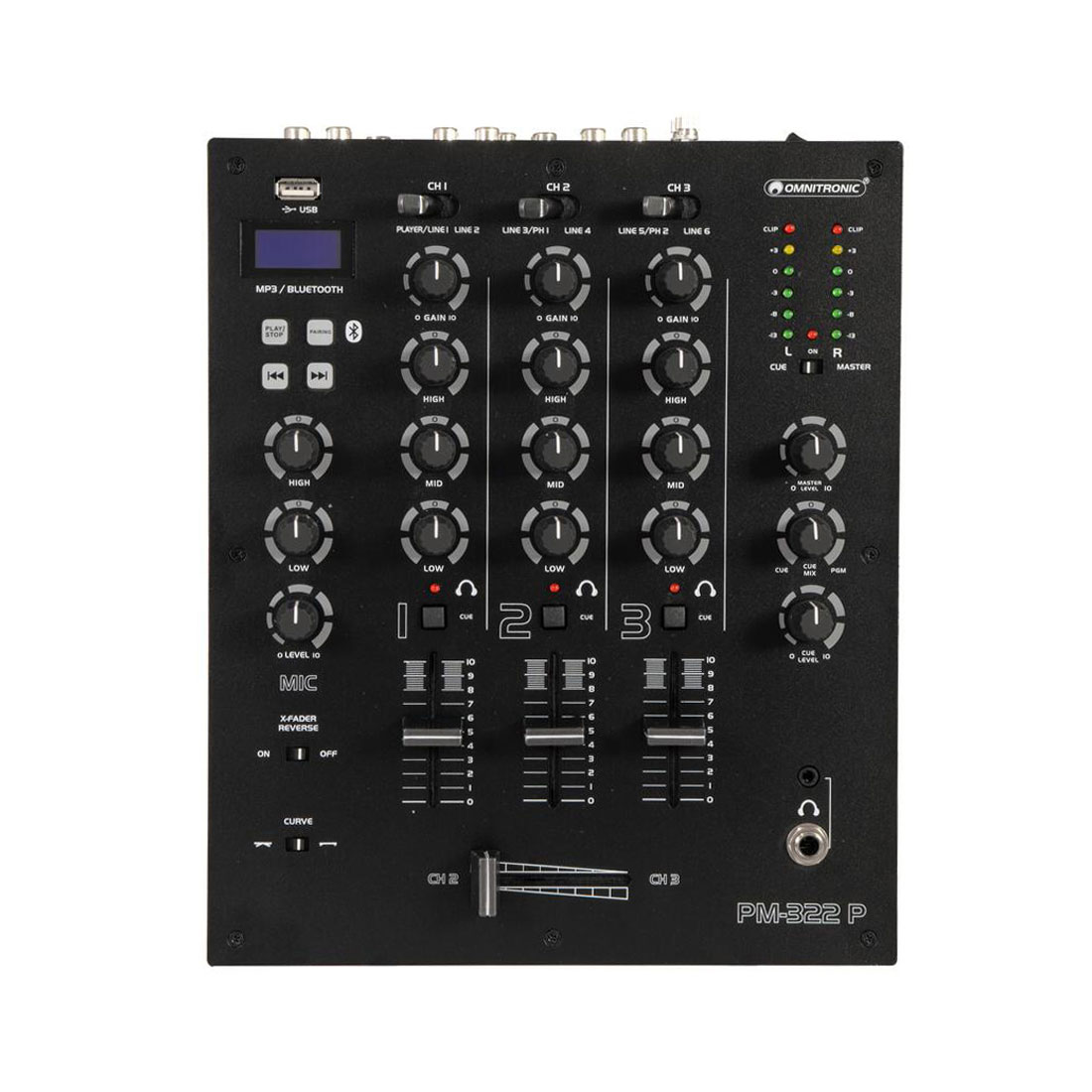

The OMNITRONIC PM322P is a compact 3-channel DJ mixer with Bluetooth and an integrated USB MP3 player, designed for mobile DJs, events, party rooms and professional entertainers. It offers flexible control of multiple audio sources, professional connectivity options and reliable performance in a practical desktop design.
The three channels feature independent Gain, 3-band EQ, CUE functionality and faders, providing precise control over each audio source. The first two channels support Line/Phono connections, while the third channel combines a Line input with an integrated player for direct music playback via Bluetooth or USB.
The PM322P features a microphone input with EQ, a crossfader with adjustable curve and Reverse function, PFL cue monitoring, as well as balanced XLR and RCA master outputs for clean and reliable signal transmission. The integrated LCD display provides easy player control, making it an ideal choice for portable DJ setups and small professional applications.
Features
- Compact 3-channel DJ mixer with Bluetooth & USB MP3 Player
- Bluetooth streaming and MP3/WAV/WMA playback via USB
- 3 channels with Gain, 3-band EQ, CUE and Channel Faders
- 2 × Stereo Line/Phono channels via RCA
- 1 × Stereo Line/USB/Bluetooth Player channel
- Crossfader with adjustable curve and Reverse function
- Microphone input with independent level control and 2-band EQ
- PFL cue monitoring of channels and Master output via headphones
- Stereo LED Master/PFL Level Meter
- XLR & RCA Master Outputs
- Dedicated Record Output
- LCD display for easy player control
- Bluetooth range up to 10 m
- Dimensions: 283 × 230 × 107 mm
- Weight: 2.58 kg
Specifications
-
Power Supply100–240 V AC, 50/60 Hz
-
Power Consumption25 W
-
Protection ClassClass II
-
Power ConnectionC8 ("Figure-8") mains input with supplied Euro power cord
-
BluetoothVersion 4.2 + EDR
-
ProfilesA2DP, AVRCP
-
Bluetooth Device NamePM-322P
-
Audio PlayerUSB + Bluetooth
-
Bluetooth RangeUp to 10 m (line of sight)
-
Carrier Frequency2.4 GHz
-
Housing ColorBlack
-
Display TypeLCD Display
-
Control ElementsAudio Player · Crossfader · Cue Mix Function · Source Selector · Crossfade Curve Switch · Crossfade Reverse Switch
-
Status LEDsSwitchable Master Level Meter · Clip · CUE · Power

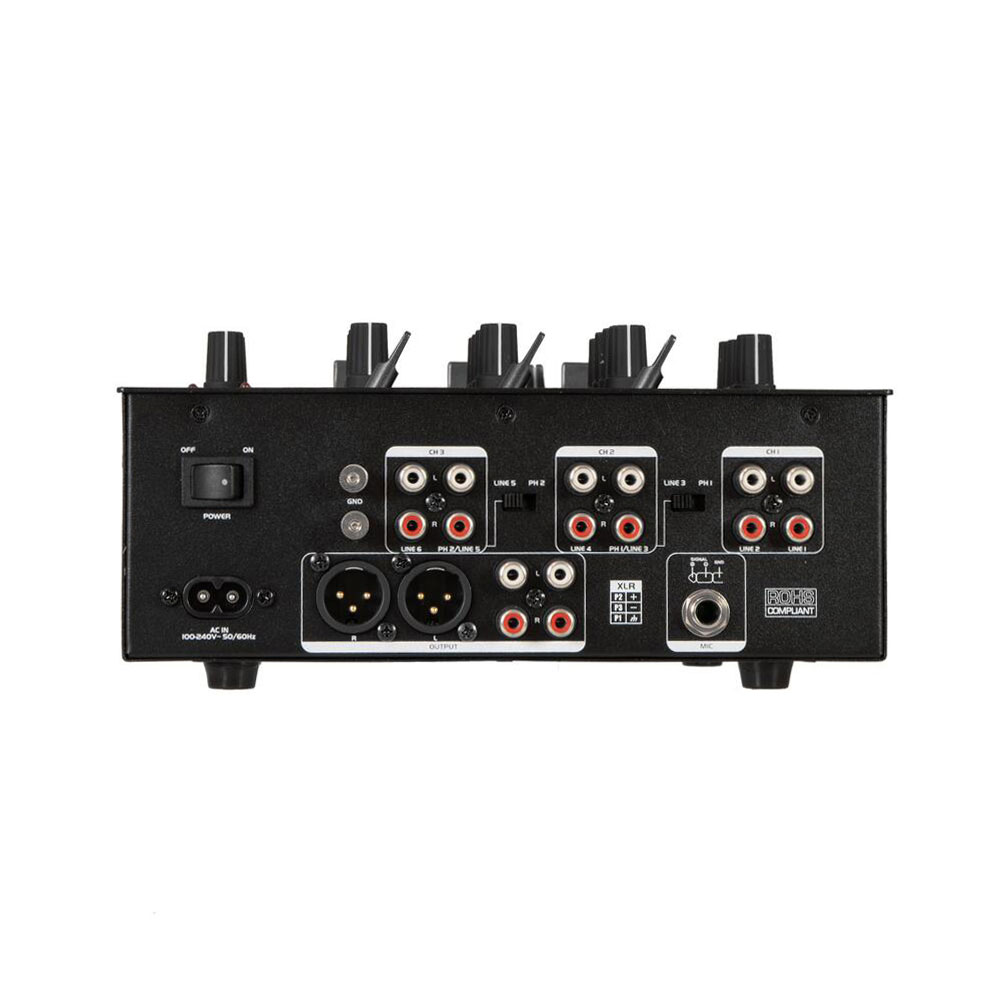

Connections
-
Line Inputs4 × Stereo RCA
-
Line/Phono Inputs2 × Stereo RCA
-
USB Audio Player Input1 × USB Type-A
-
Microphone Input1 × 6.3 mm Mono Jack
-
Master Output2 × 3-pin XLR
-
Master Output2 × Stereo RCA
-
Headphone Output1 × 6.3 mm Stereo Jack
Channels
-
Input Channel1 × Stereo with Line/Line/Player Selector via RCA or Player, Fader Control, 3-band EQ, Gain Control & CUE Switch
-
Input Channels2 × Stereo with Line/Line/Phono Selector via RCA, Fader Control, 3-band EQ, Gain Control & CUE Switch
-
Microphone Channel1 × Mono via Jack, Rotary Level Control, 2-band EQ & Cue Mix Function
-
Master Output1 × Stereo via XLR or RCA with Rotary Level Control
-
Headphone Output1 × Stereo Jack with Rotary Level Control
General
-
Supported Audio FormatsMP3 · WAV · WMA
-
USB PortType-A
-
USB Storage SupportUSB Devices up to 32 GB (FAT32)
-
Housing DesignDesktop Console Housing
-
Dimensions28.3 × 23 × 10.7 cm
-
Weight2.58 kg
