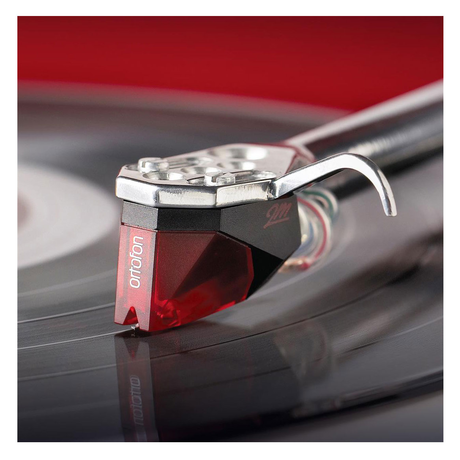

Ortofon 2M Red Verso

Ortofon 2M Red Verso

Ελλειπτική κεφαλή πικάπ
- Τύπος Ελλειπτική
- Tracking force 1.8 g
- Output voltage 5.5 mV
- Frequency response - 20-20.000 Hz
Code: 18721
Out of stock
125,00€
Quantity:
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Ελλειπτική κεφαλή πικάπ
Χαρακτηριστικά
- Output voltage at 1000 Hz, 5cm/sec. - 5.5 mV
- Channel balance at 1 kHz - 1.5 dB
- Channel separation at 1 kHz - 22 dB
- Channel separation at 15 kHz - 15 dB
- Frequency range at - 3dB - 20-22.000 Hz
- Frequency response - 20-20.000 Hz + 3 / - 1 dB
- Tracking ability at 315Hz at recommended tracking force - 70 µm
- Compliance, dynamic, lateral - 20 µm/mN
- Stylus type - Elliptical
- Stylus tip radius - r/R 8/18 µm
- Tracking force range - 1.6-2.0 g (16-20 mN)
- Tracking force, recommended - 1.8 g (18 mN)
- Tracking angle - 20°
- Internal impedance, DC resistance - 1.3 kOhm
- Internal inductance - 700 mH
- Recommended load resistance - 47 kOhm
- Recommended load capacitance - 150-300 pF
- Cartridge colour, body/stylus - Black/Red
- Cartridge weight - 7.2 g
- 2M PnP MkII cartridge with integrated headshell weight - 20 g
- 2M PnP MkII cartridge with integrated headshell length - 52 mm
- Replacement stylus unit - 2M Red (interchangeable with 2M Blue and 2M Silver)
- Stylus lifetime: with proper care we find that up to 1000 hours is possible without degradation of performance
-
ManufacturerOrtofon
