Next-Generation High-Resolution Recorder

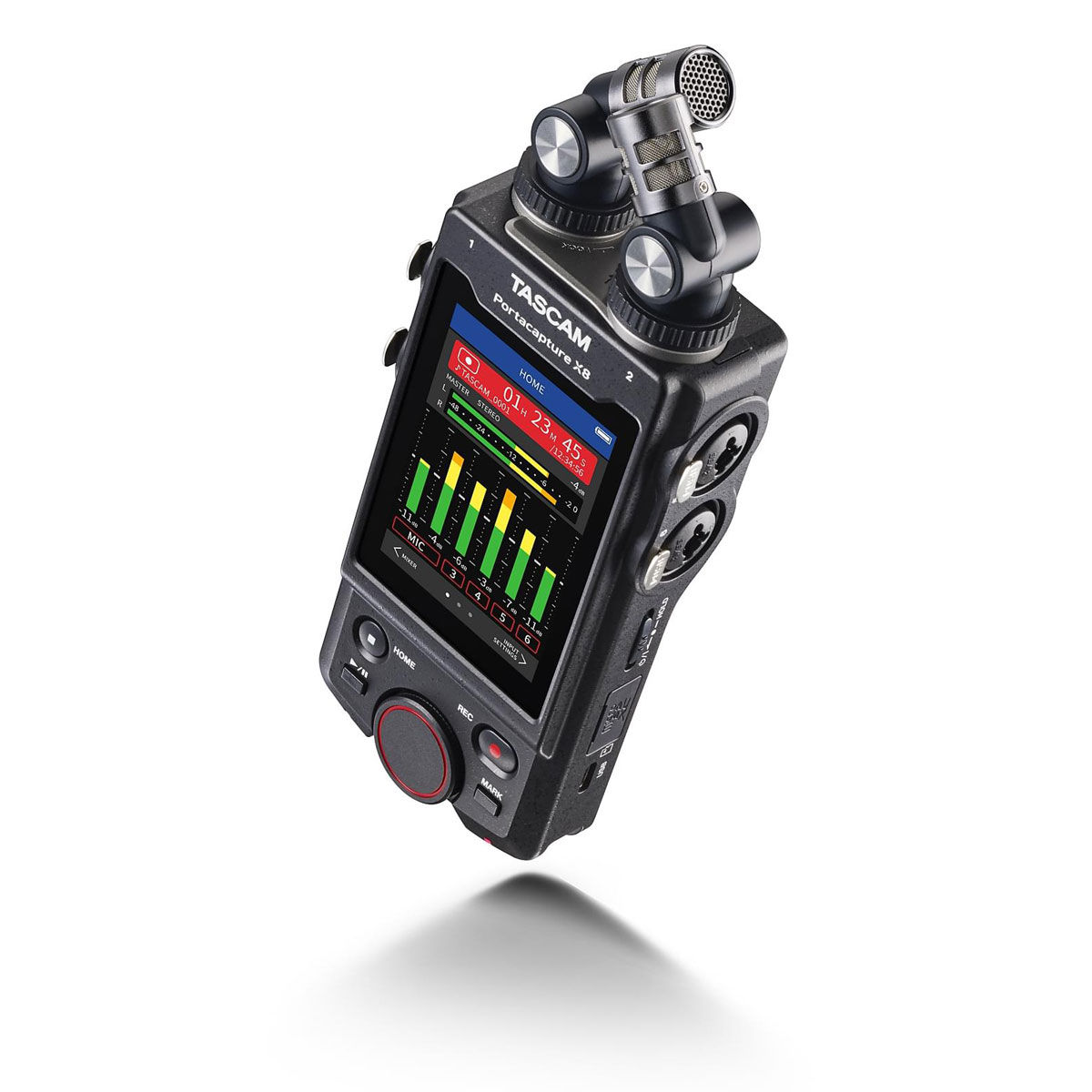

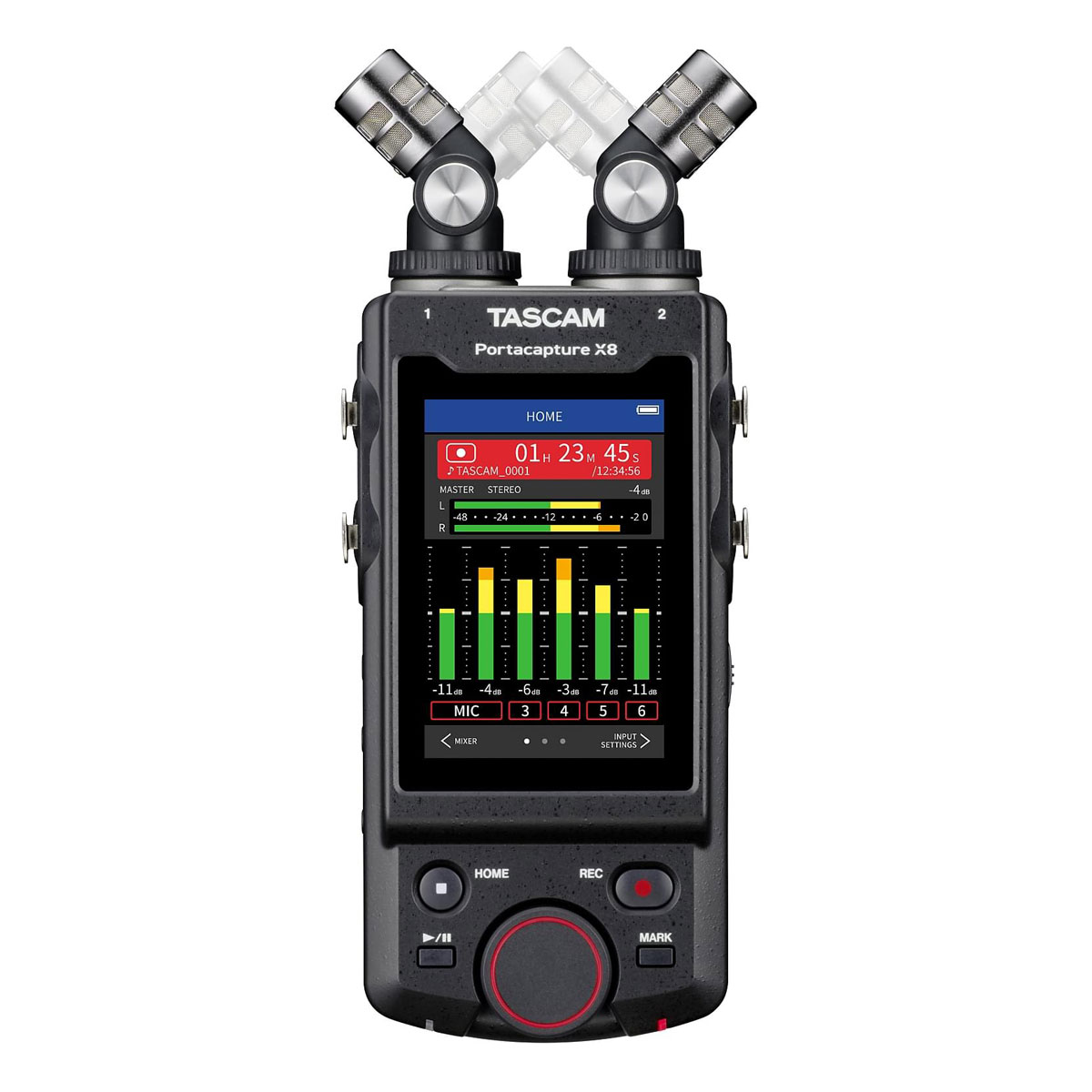

• The 3.5-inch color touchscreen provides excellent visibility and easy operation.

• The intuitive user interface supports a variety of recording scenarios, including:

• Basic multitrack recording
• Podcasting
• Music
• Voice (interviews, vlogs)
• Outdoor recordings
• ASMR and more

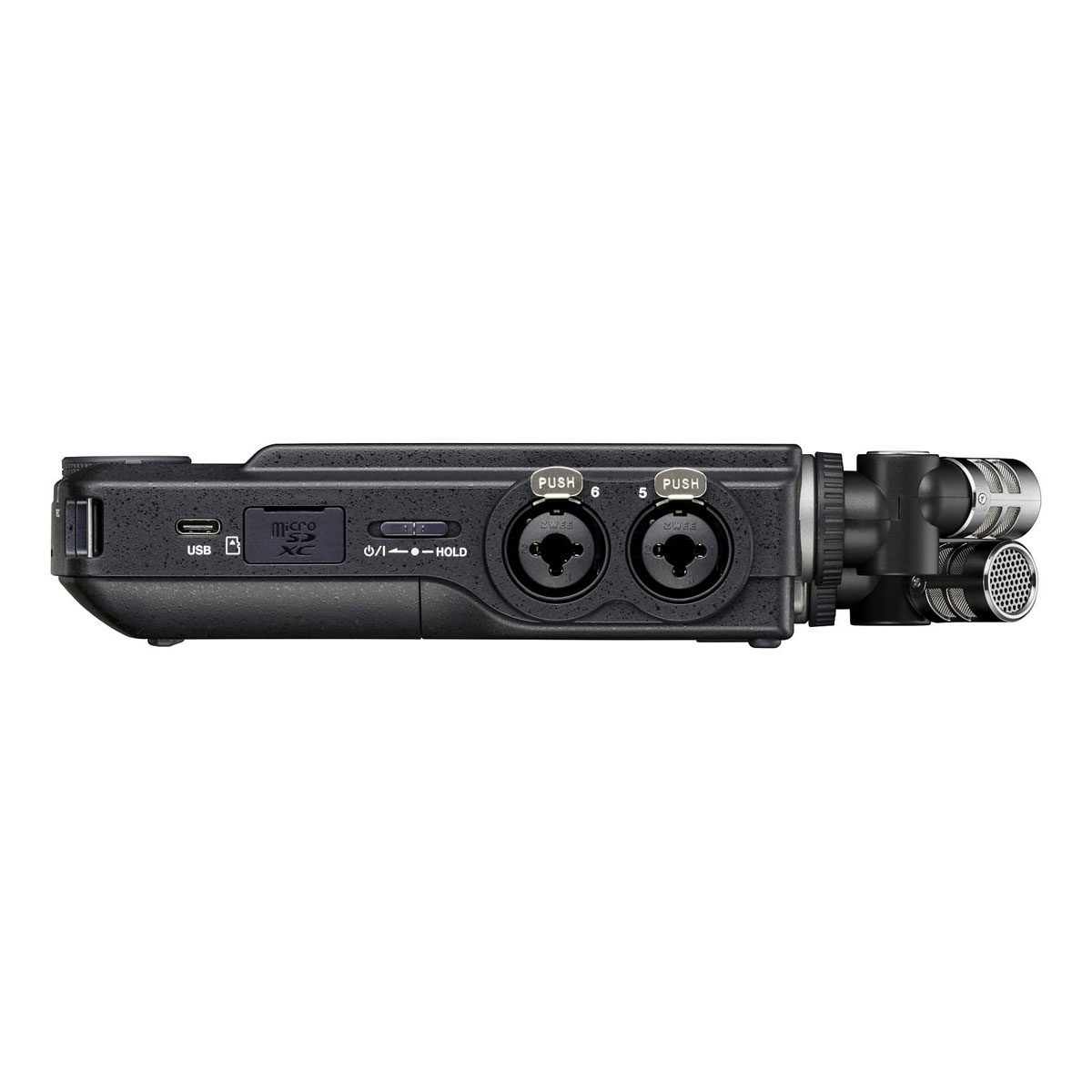

• It features 4 XLR / TRS combo inputs with locking, supporting multiple microphones or line-level sources depending on the scene.
• Each channel has independent phantom power support (24V / 48V).

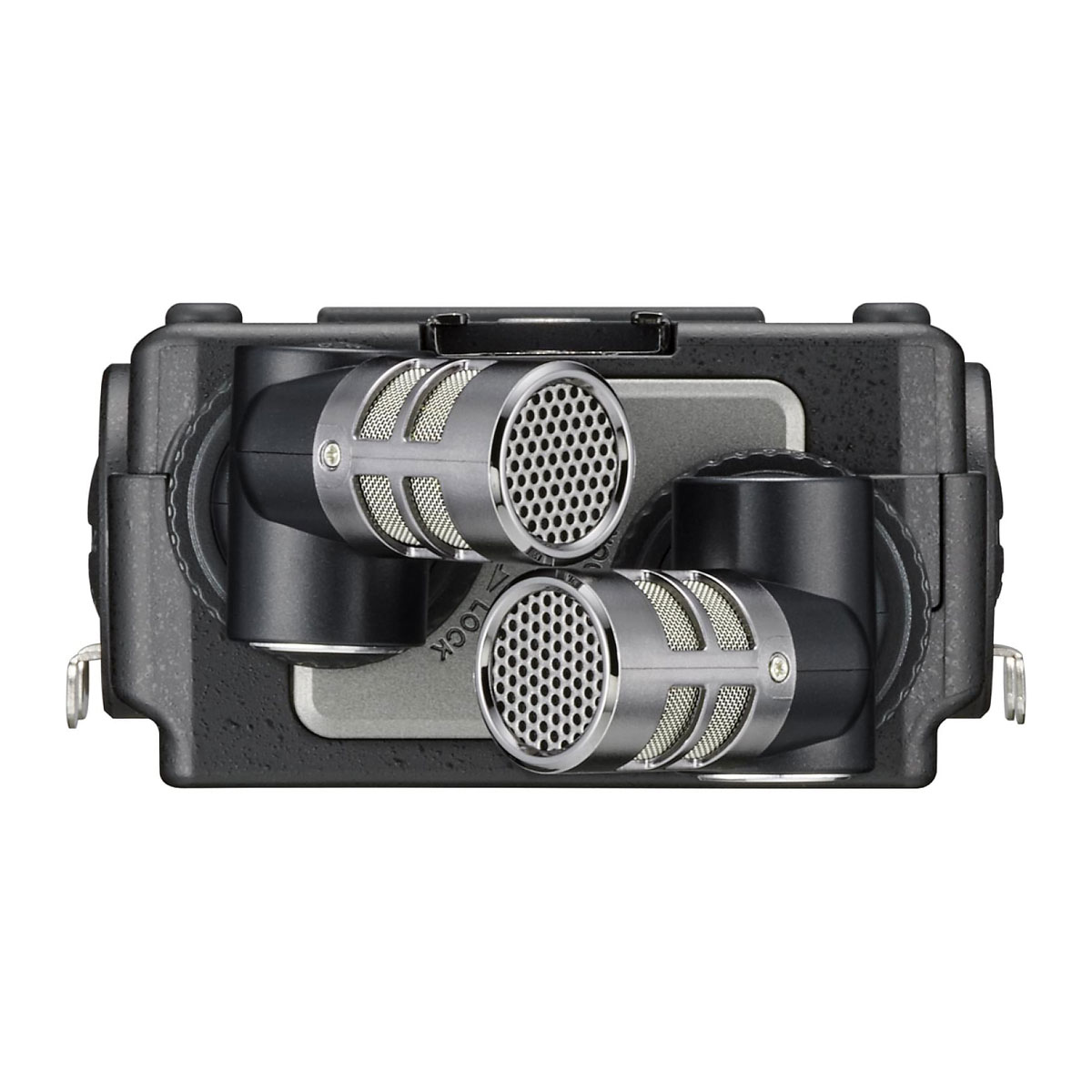

• The detachable microphone module uses a large-diaphragm condenser microphone, and the L and R microphones can be attached or detached from the main unit to form A-B / X-Y patterns.
• Supports up to 8 tracks recording (6 channels + 2 mix).
• Capable of 192 kHz / 32-bit floating point recording, providing uncompromising audio quality for post-production in any DAW software.
• The dual recording function allows each track to be recorded in a different file format.
• Supports USB audio interface mode 8-in / 2-out.
• Wireless control from a smartphone or tablet is available via the optional AK-BT1 Bluetooth dongle (sold separately).
• Timecode synchronization via Bluetooth is also supported.
• Equipped with a variety of functions such as low-cut, compressor, limiter, auto-gain, noise gate, etc.
• Includes CAMERA / EXT IN for connecting external devices or cameras.
• Recorded audio can be monitored in real-time.
• Also supports audio input from wireless microphones.
• Equipped with CAMERA / LINE OUT with built-in attenuation, allowing audio output to external devices such as cameras.
• Audio monitoring is possible via headphones or the built-in speaker.
• Supports microSD / microSDHC / microSDXC cards up to 512 GB as recording media.
• Includes a USB Type-C port with USB bus power support.
• Features Mark function, Slate Tone function, and more.

Specifications

• Recording media: microSD (64 MB – 2 GB), microSDHC (4–32 GB), microSDXC (48–512 GB)
• Recording / playback formats:
• WAV (BWF): 44.1 / 48 / 96 / 192 kHz, 16 / 24-bit or 32-bit float
• MP3: 128 / 192 / 256 / 320 kbps, 44.1 / 48 kHz
• Input channels: 6 (1,2: True X-Y / A-B MIC; 3,4,5,6 or CAMERA / EXT IN)
• Recording tracks: 8 tracks (6 tracks + 2 mix)
• Maximum tracks (dual recording): 16

Inputs:

• 1,2 (UNBALANCED) – Mini TRS 3.5 mm
• 3,4,5,6 (BALANCED) – XLR / TRS combo, TRS 6.3 mm
• XLR: compatible with Phantom Power
• CAMERA / EXT IN (UNBALANCED) – 3.5 mm stereo

Outputs:

• CAMERA / LINE OUT – 3.5 mm stereo
• Headphones – 3.5 mm stereo, max output 50 mW + 50 mW (32Ω)

• Bluetooth: AK-BT1 dongle support
• Built-in speaker: 0.4 W (mono)
• USB port: Type-C, USB 2.0 High Speed
• Audio Interface
• Multitrack mode: 8-in / 2-out (6 channels + 2 mix)
• Stereo mixing: 2-in / 2-out

Miscellaneous

• Power supply: 4 × AA batteries (alkaline, NiMH rechargeable, or disposable lithium), USB bus power, AC adapter (TASCAM PS-P520U, sold separately)
• Display: 3.5” full-color LCD touchscreen (320 × 480)

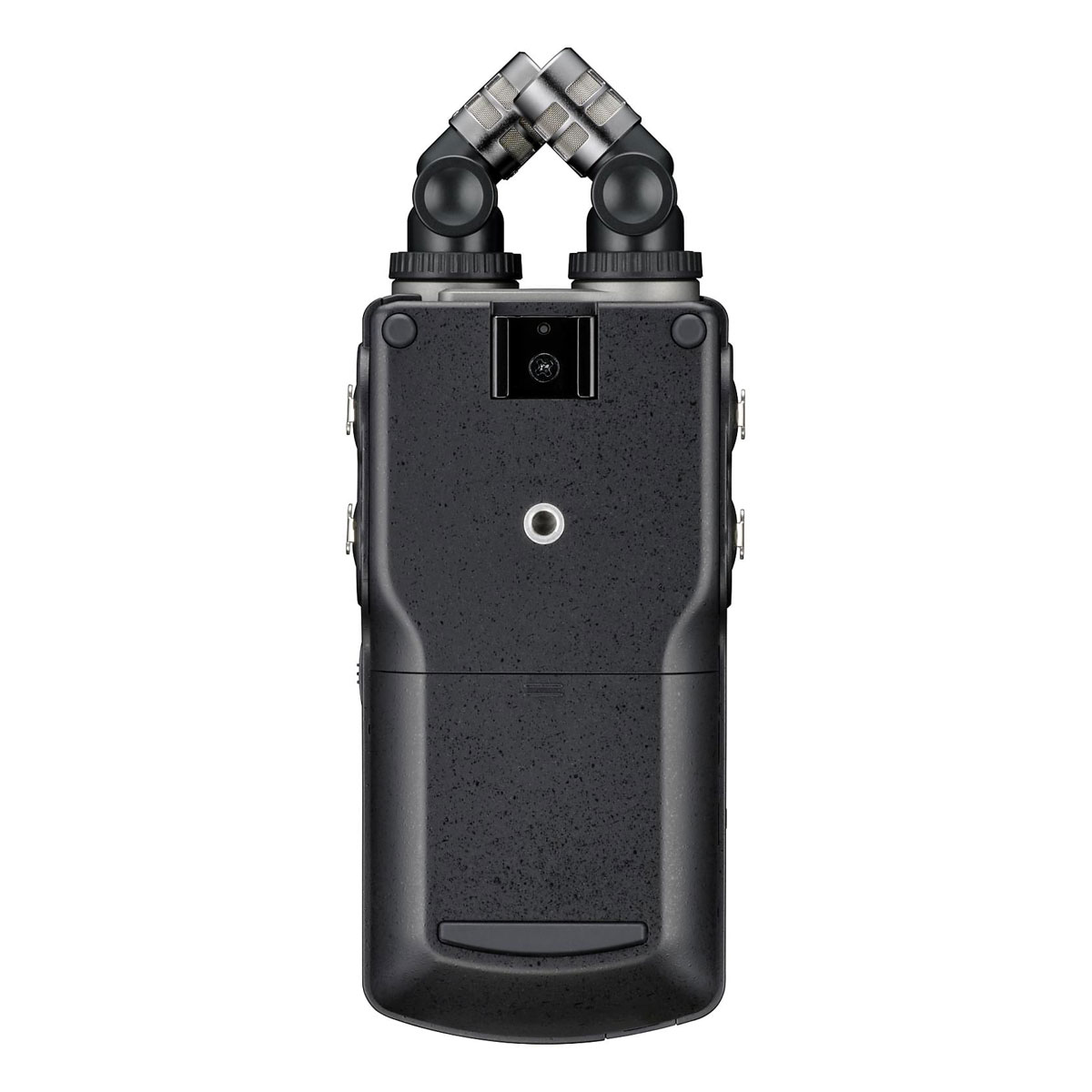

• Tripod mount: 1/4” screw hole
• Dimensions: 83 × 205.6 × 41.5 mm
• Weight: 479 g (with batteries)
• Accessories: Owner’s manual (including warranty) ×1, 4 × AA batteries
