FBT XSUB 115SA

FBT XSUB 115SA

- 15" woofer / 3" voice coil
- Frequency response 42Hz - 120Hz
- 4 DSP presets
- 1200W Class D power amplifier
- 15mm / 0,59" birch plywood cabinet
- Optional 100mm / 3,93" transport wheels
- M20 stand pole mount
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406

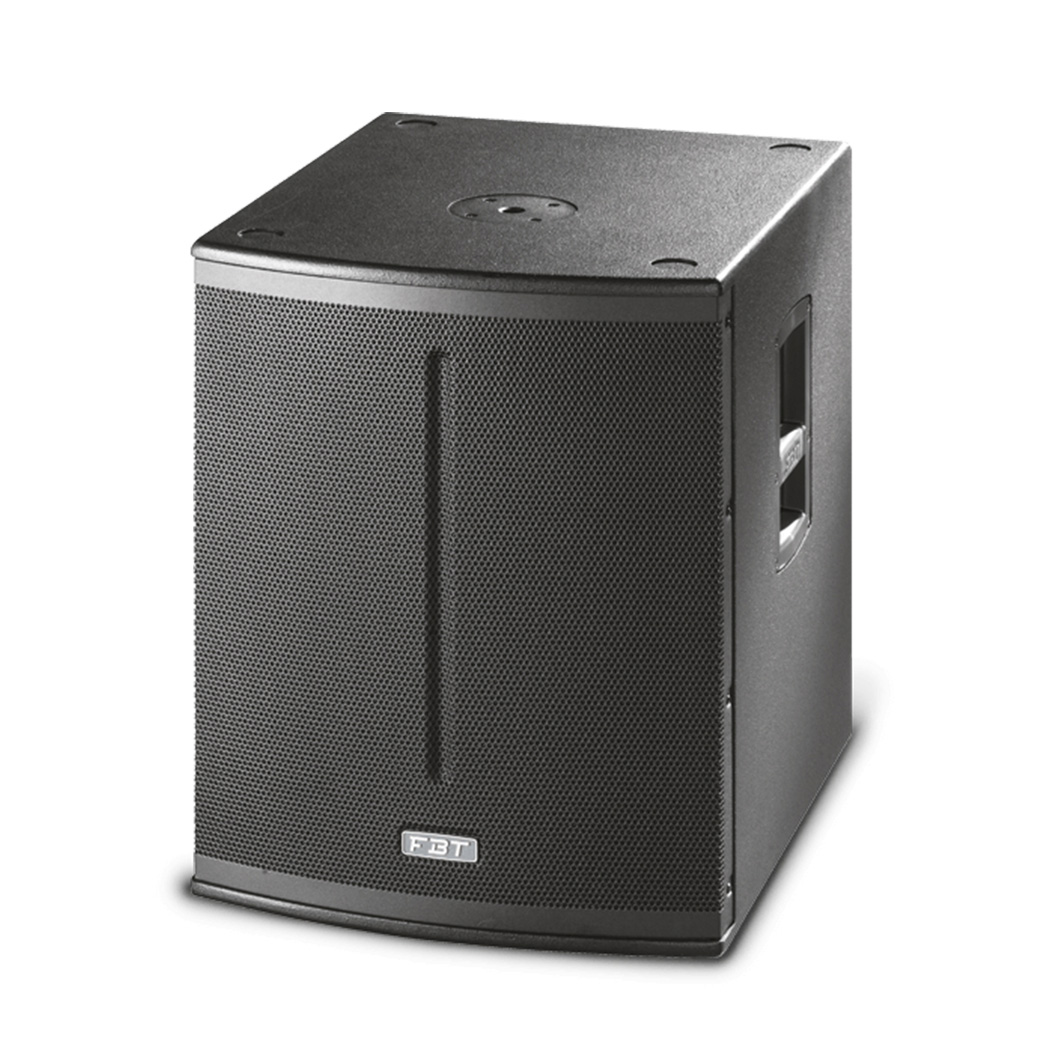

The FBT X-SUB 115SA , 1 x 15" bass-reflex design subwoofer, is the perfect low frequency extension and the ideal companion for the FBT X-LITE and FBT X-PRO series. The FBT X-SUB 115SA provides the following performance criteria: frequency response of 42Hz to 120Hz @ -6dB, maximum SPL of 135 dB peak, 1200W Class D amplifier
The FBT X-SUB 115SA provides a DSP processor with 4 presets (2 responses with 2 different cut-off frequencies). The FBT X-SUB 115SA feature 0,59" birch plywood construction with scratch resistant black paint finish with M20 top mounted stand adapter, two FBT design aluminium handles and four optional 100mm/3,93" transport wheels

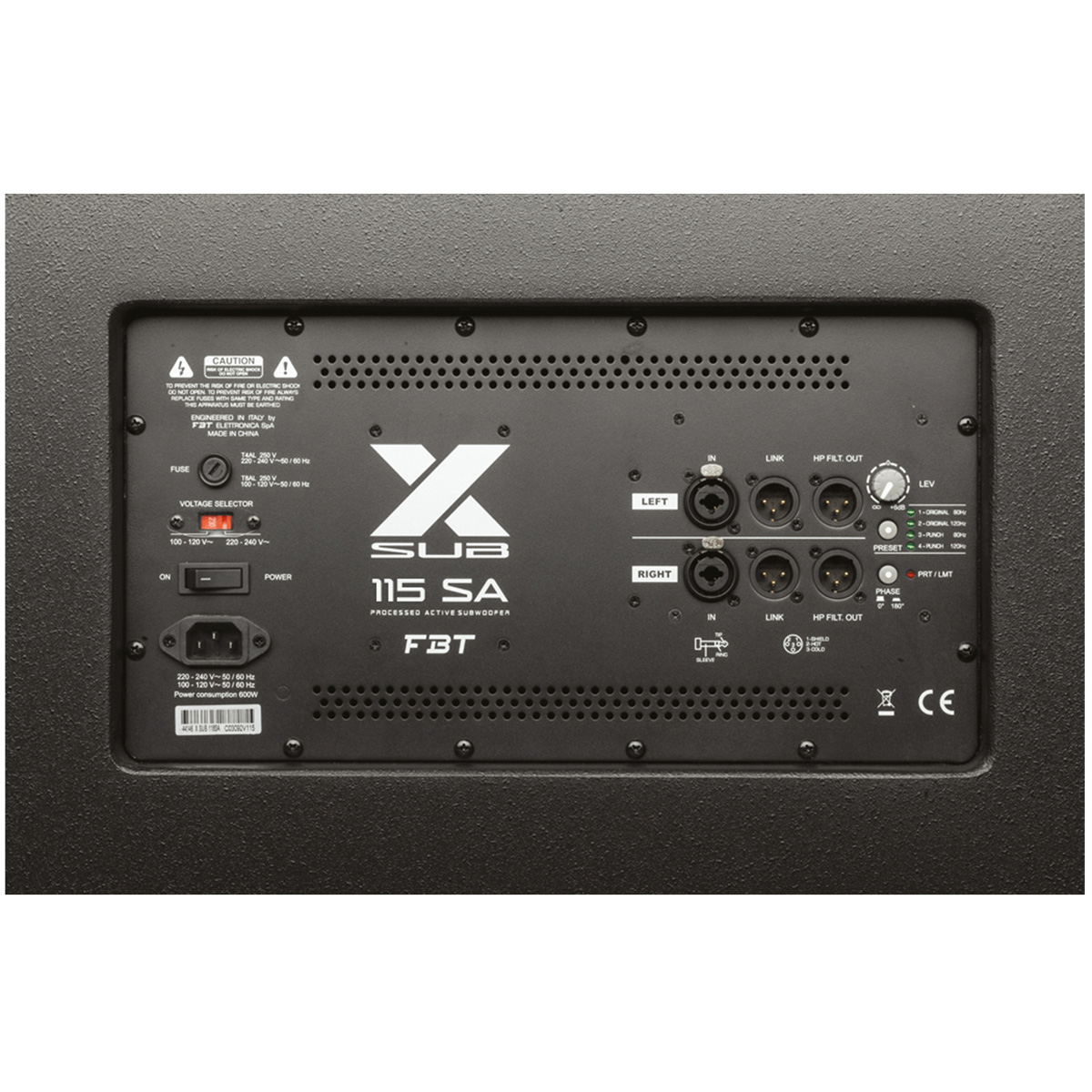

The control panel provides two channels with stereo combo XLR/jack in-outs, stereo XLR HP filter outs, level control, preset switch, 0°/180° phase reversal switch, prt-lmt led indicators
Main Features
- Active subwoofer
- 15" woofer / 3" voice coil
- Frequency response 42Hz - 120Hz
- 4 DSP presets
- 1200W Class D power amplifier
- 15mm / 0,59" birch plywood cabinet
- Optional 100mm / 3,93" transport wheels
- M20 stand pole mount
Main Features
-
System type1 way
-
Internal amplifiermax. 1200W RMS
-
max. peak1400W
-
Low frequency woofer1 x 15" / 3" coil
-
Frequency response @-6dB42Hz - 120Hz
-
Input impedance22kOhm
-
Max. SPL cont/peak132 / 135
-
Dispersionomnidirectional
-
Crossover frequency90 or 140Hz
-
AC power requirement600VA
-
Input connectorsStereo XLR
-
Net dimensions (WxHxD)500x517x570
-
Shipping dimensions (WxHxD)600x617x670
-
Net weight30
-
Shipping weight32
-
Enclosure materiabirch plywood
-
Power supply cable6m
