HK Audio PORTABLE SUB 115 A
HK Audio PORTABLE SUB 115 A
- 1400W Peak / 700W RMS amplifier power
- Maximum SPL: 129 dB
- 15" woofer with 3" voice coil
- Presets for LUNAR, SONAR, POLAR and General LPF 100 Hz
- 100 Hz / 80 Hz crossover settings
- Robust wooden cabinet with professional finish
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Related Products

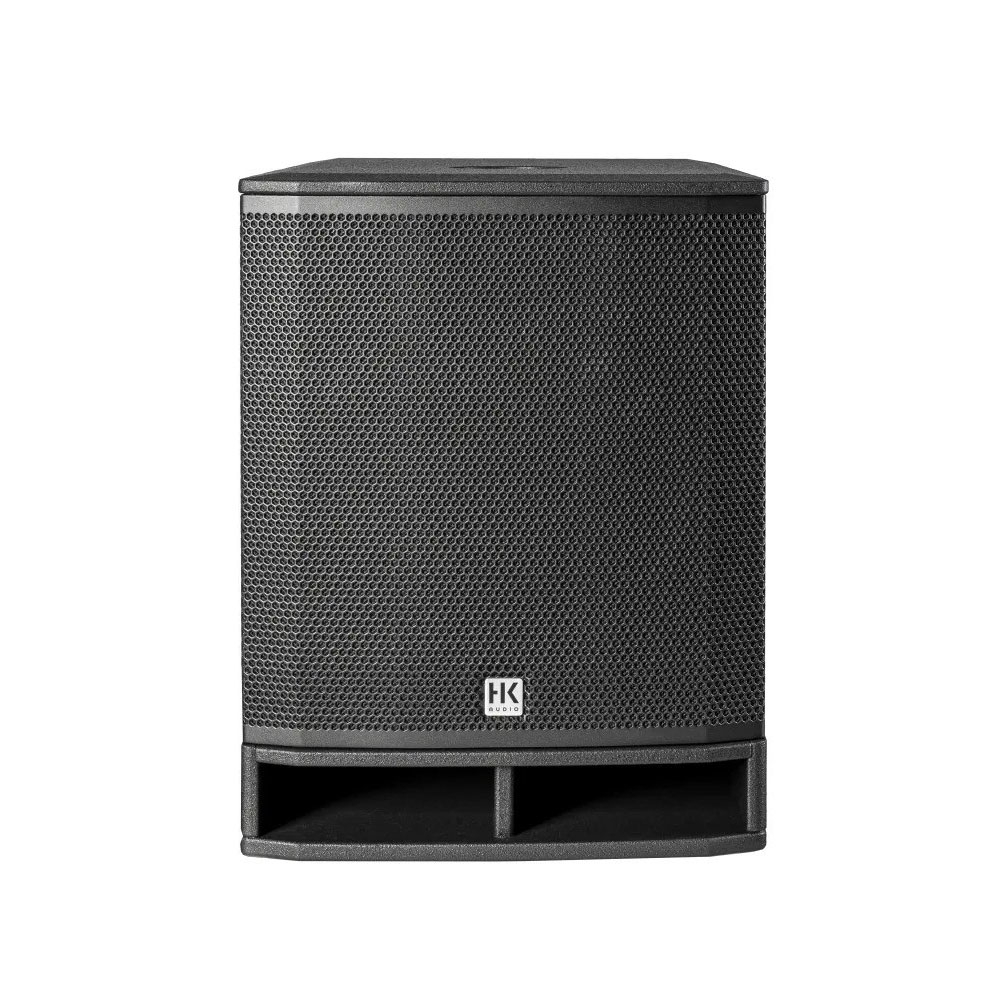

The HK Audio PORTABLE SUB 115 A is a compact yet powerful 15" active subwoofer, designed for mobile applications and flexible PA setups where dynamic and controlled low-frequency performance is required.
With up to 1400 W peak amplifier power and a maximum SPL of 129 dB, it delivers precise and punchy bass, significantly extending the low-frequency response and dynamics of a PA system.
The 15" woofer with a 3" voice coil is combined with Class D bi-amped amplification and DSP, while dedicated presets allow optimized integration with LUNAR, SONAR and POLAR systems, as well as general applications with a 100 Hz LPF.

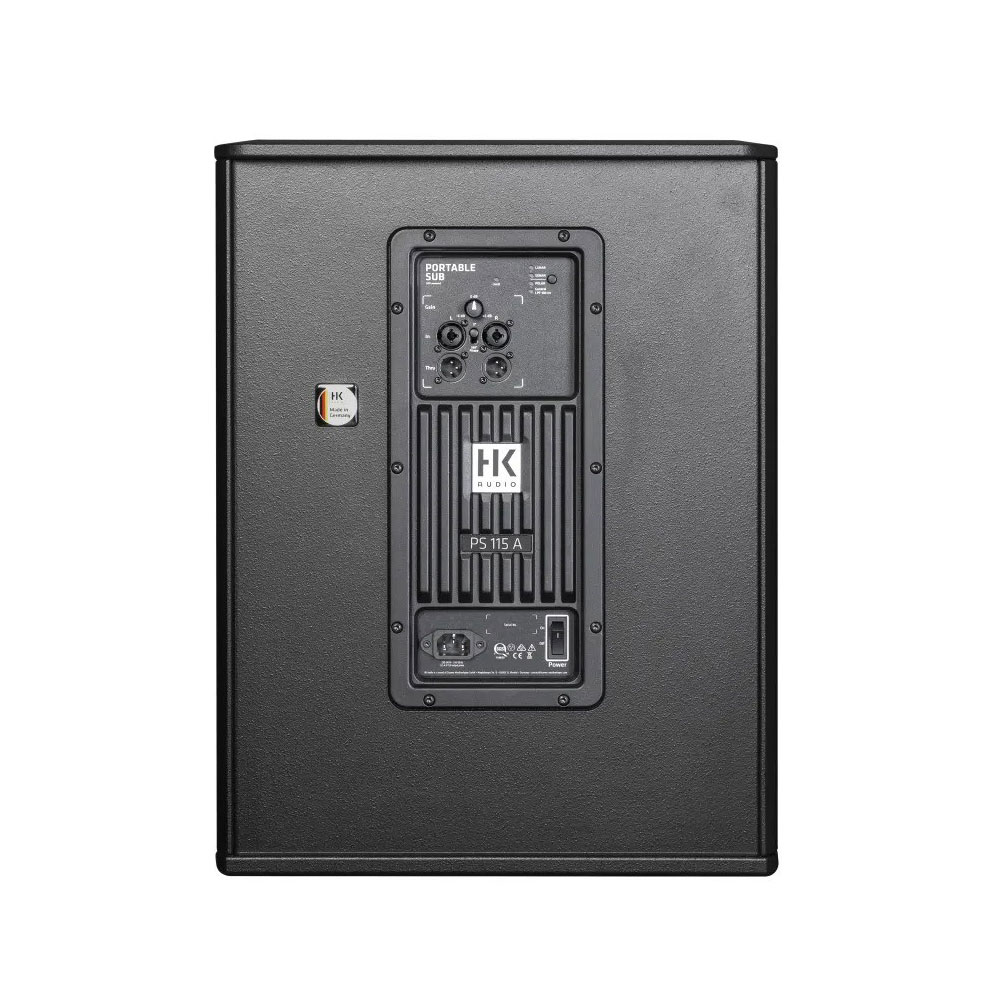

It features two balanced XLR/jack inputs and two XLR Thru outputs, while the crossover adjusts to 100 Hz or 80 Hz depending on the selected preset.

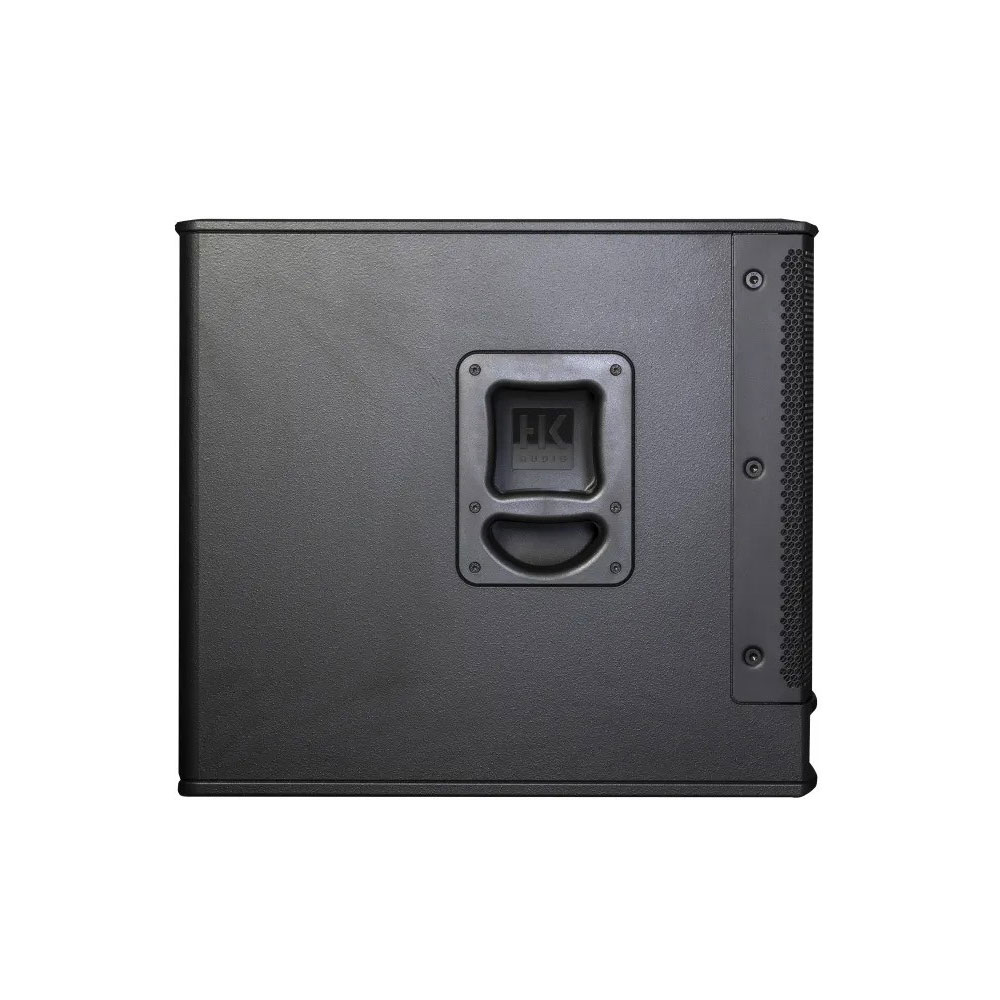

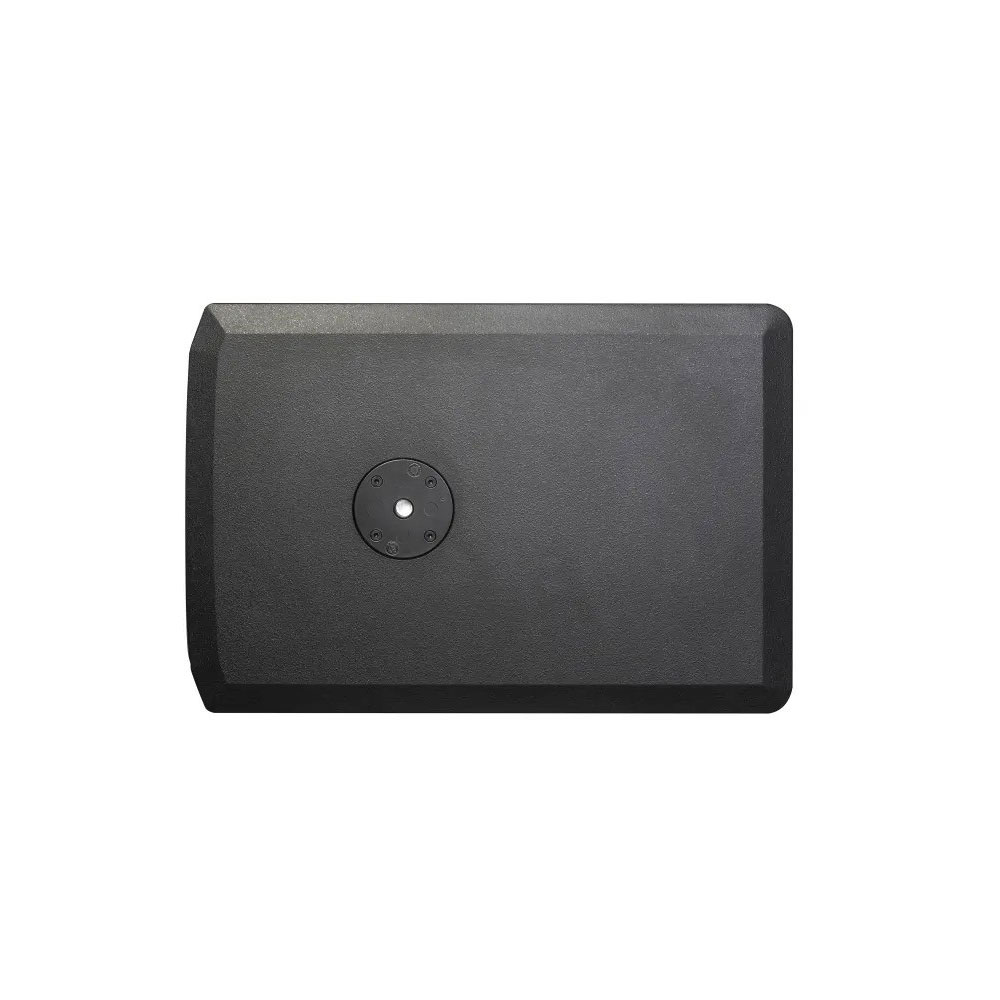

The robust wooden cabinet features an M20 pole mount and two MultiGrip handles, providing practical transport and easy integration into different mobile PA applications.
Specifications
-
TypeActive subwoofer
-
Cabinet principleBass reflex
-
Low-frequency driver1 x 15" with 3" voice coil
-
Maximum SPL129 dB
-
Frequency response -6 dB42 Hz - X-Over
-
Frequency response -10 dB38 Hz - X-Over
-
Crossover frequency100 Hz / 80 Hz depending on preset
-
CrossoverX-Over with 24 dB/oct.
-
AmplifierClass D, Bi-amped
-
Amplifier power RMS700 W
-
Amplifier power peak1400 W
-
PreamplifierStereo preamp
-
Sample rate48 kHz
-
Latency2 ms - 3.3 ms depending on preset
-
PresetsLUNAR / SONAR / POLAR / General LPF 100 Hz
-
Inputs2 x XLR/jack combo, balanced
-
Outputs2 x XLR Thru, balanced
-
Maximum input level20 dBu
-
Speaker protectionSubsonic Filter, Peak and RMS Limiter
-
Mounting1 x M20 pole mount
-
Carrying handles2 x MultiGrip
-
Cabinet materialMDF
-
Cabinet finishAcrylic enamel
-
ColorJet Black (RAL 9005)
-
Front grilleSteel front grille with acoustic foam backing
-
Power supply1 x IEC connector
-
Power consumption0.5 A / 220-240 V AC @ 1/8 output power; 0.9 A / 100-120 V AC @ 1/8 output power
-
Dimensions (W x H x D)43 x 56.5 x 63.8 cm
-
Weight32.8 kg
-
ConstructionMade in Germany
-
Manufacturer warranty5 years with registration
Download the documents:
