HK Audio PORTABLE SUB 118 A
HK Audio PORTABLE SUB 118 A
- 1400W Peak / 700W RMS amplifier power
- Maximum SPL: 131 dB
- 18" woofer with 3" voice coil
- Presets for LUNAR, SONAR, POLAR and General LPF 100 Hz
- 100 Hz / 80 Hz crossover settings
- Frequency response down to 35 Hz (-6 dB)
- Robust wooden cabinet with professional finish
Do you have questions or want to order by phone?
Καλέστε μας στο 210 21 30 405 & 210 21 30 406
Related Products

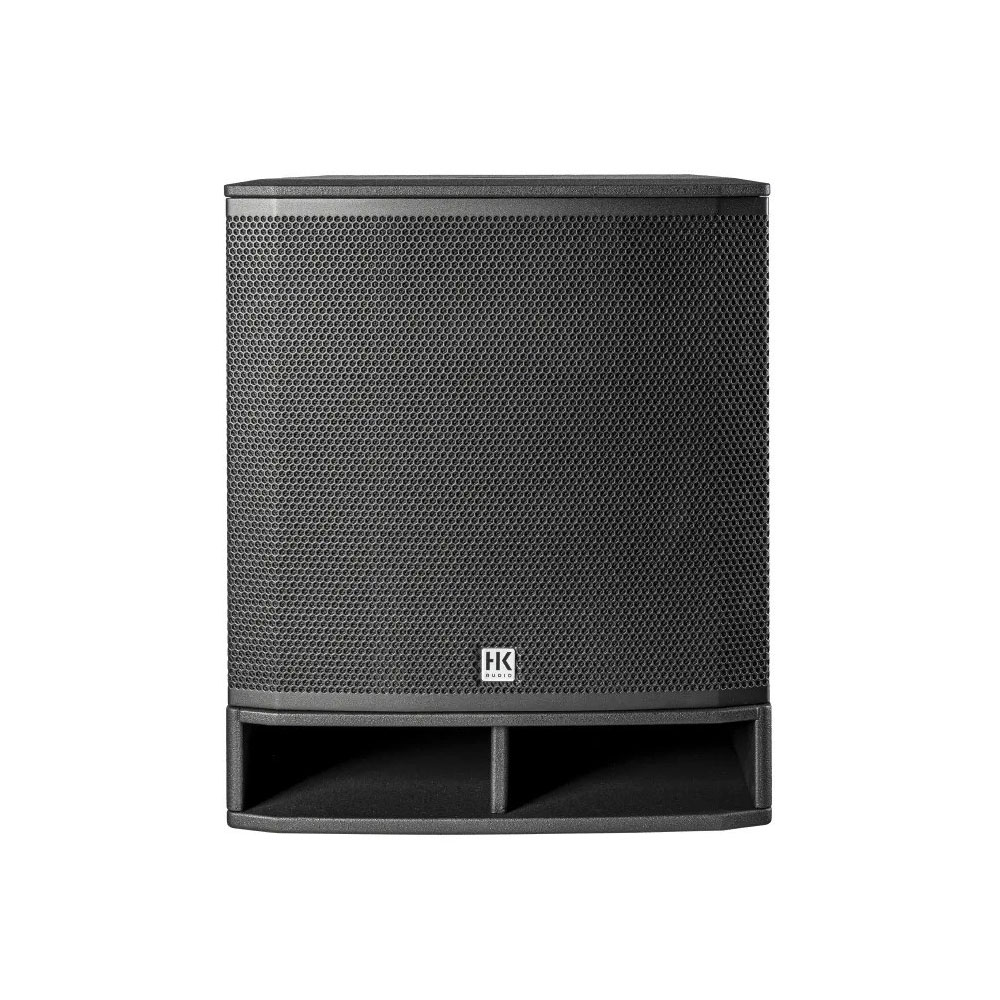

The HK Audio PORTABLE SUB 118 A is a powerful 18" active subwoofer, designed for applications requiring extended low-frequency response and particularly powerful bass performance.
With up to 1400 W peak amplifier power and a maximum SPL of 131 dB, it delivers increased punch and powerful low-frequency output, making it an ideal choice for applications where maximum bass performance is required.
The 18" woofer with a 3" voice coil is combined with Class D bi-amped amplification and a stereo preamp, while dedicated presets allow optimized integration with LUNAR, SONAR and POLAR systems, as well as general applications with a 100 Hz LPF.
The frequency response extends down to 35 Hz (-6 dB), providing extended low-end response and greater depth and impact to the overall PA system.

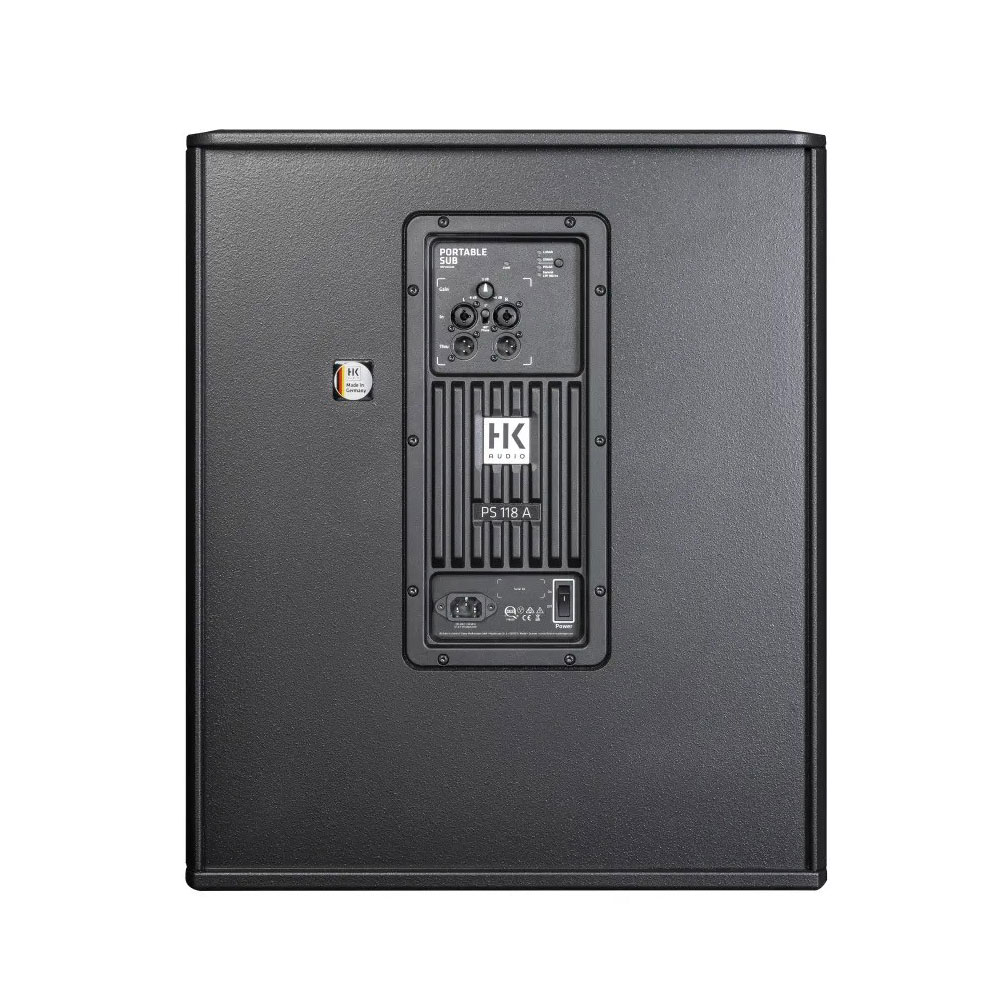

It features two balanced XLR/jack inputs and two XLR Thru outputs, while the crossover adjusts to 100 Hz or 80 Hz depending on the selected preset.

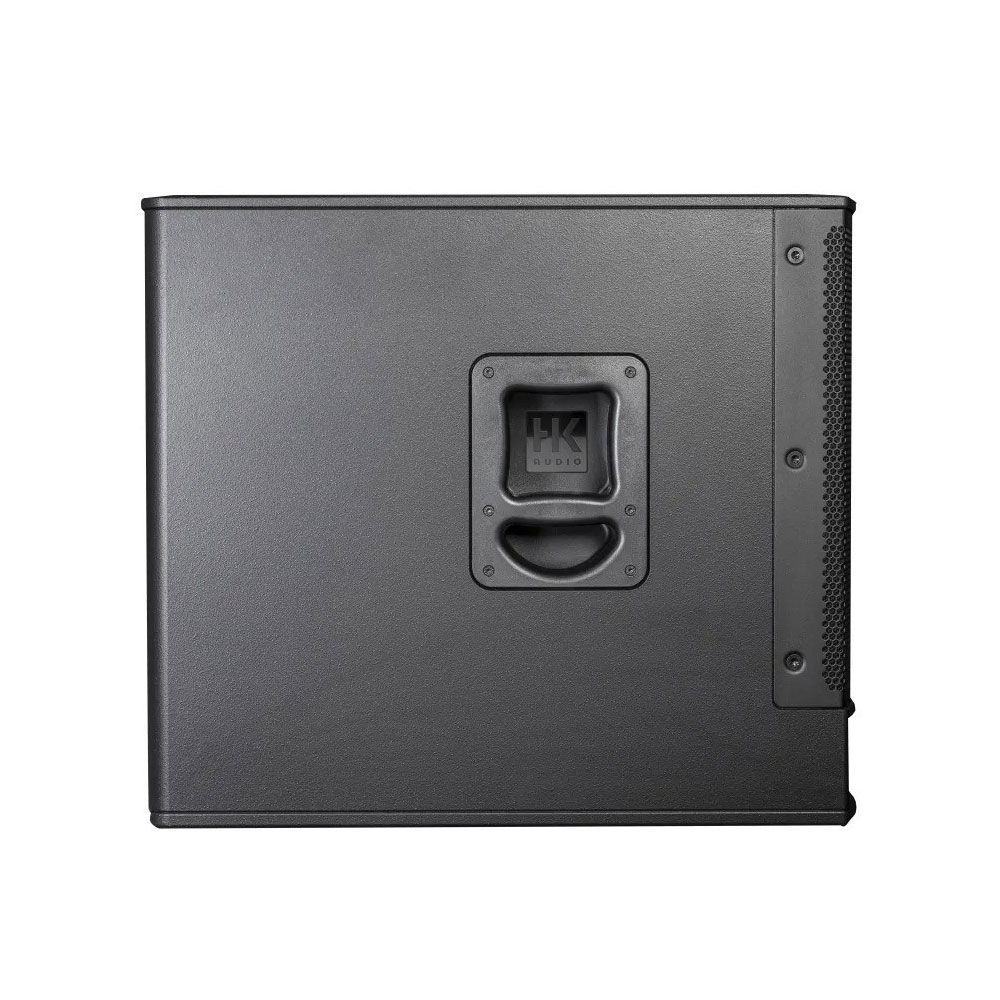

The robust wooden cabinet features an M20 pole mount and two MultiGrip handles, combining high output with practical transport and flexible integration into mobile PA setups.
Specifications
-
TypeActive subwoofer
-
Cabinet principleBass reflex
-
Low-frequency driver1 x 18" with 3" voice coil
-
Maximum SPL131 dB
-
Frequency response -6 dB35 Hz - X-Over
-
Frequency response -10 dB31 Hz - X-Over
-
Crossover frequency100 Hz / 80 Hz depending on preset
-
CrossoverX-Over with 24 dB/oct.
-
AmplifierClass D, Bi-amped
-
Amplifier power RMS700 W
-
Amplifier power peak1400 W
-
PreamplifierStereo preamp
-
Sample rate48 kHz
-
Latency2 ms - 3.3 ms depending on preset
-
PresetsLUNAR / SONAR / POLAR / General LPF 100 Hz
-
Inputs2 x XLR/jack combo, balanced
-
Outputs2 x XLR Thru, balanced
-
Maximum input level20 dBu
-
Speaker protectionSubsonic Filter, Peak and RMS Limiter
-

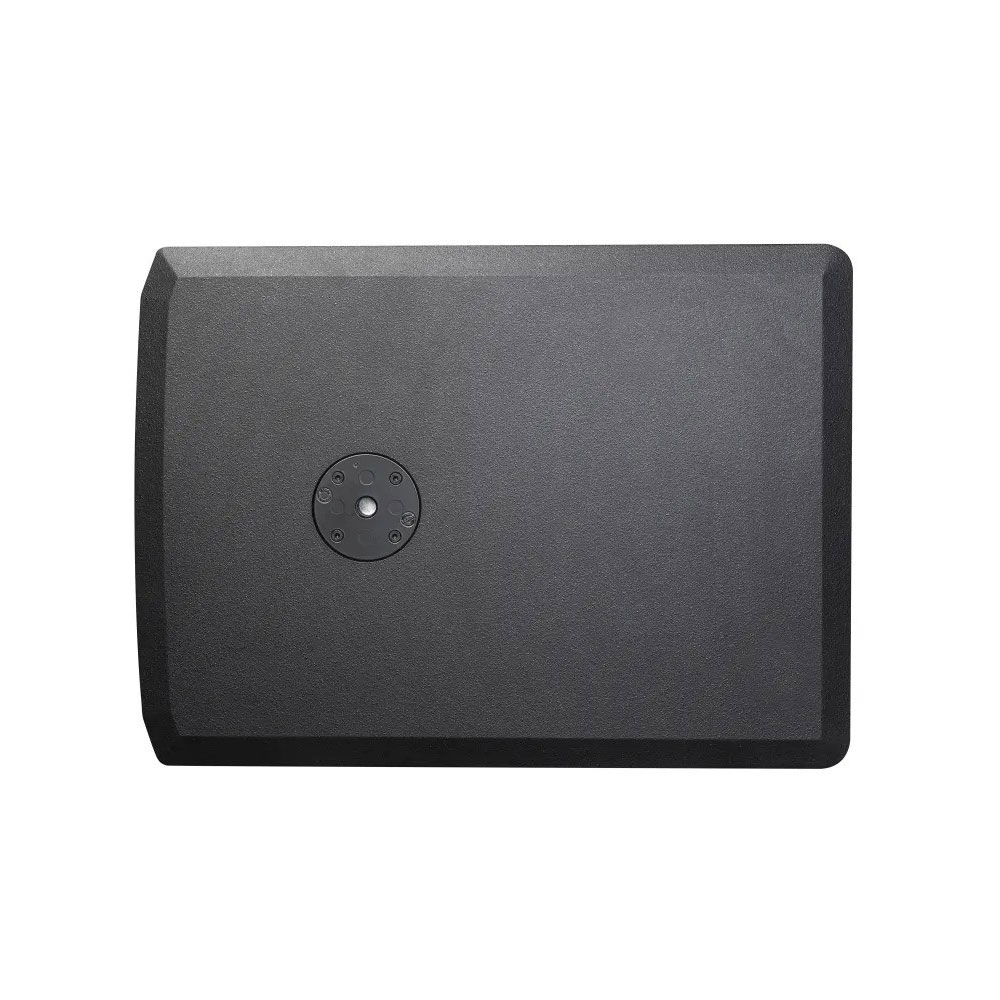

Mounting1 x M20 pole mount
-
Carrying handles2 x MultiGrip
-
Cabinet materialMDF
-
Cabinet finishAcrylic enamel
-
ColorJet Black (RAL 9005)
-
Front grilleSteel front grille with acoustic foam backing
-
Power supply1 x IEC connector
-
Power consumption0.5 A / 220-240 V AC @ 1/8 output power; 0.9 A / 100-120 V AC @ 1/8 output power
-
Dimensions (W x H x D)51 x 61.5 x 70.3 cm
-
Weight39.3 kg
-
ConstructionMade in Germany
-
Manufacturer warranty5 years with registration
